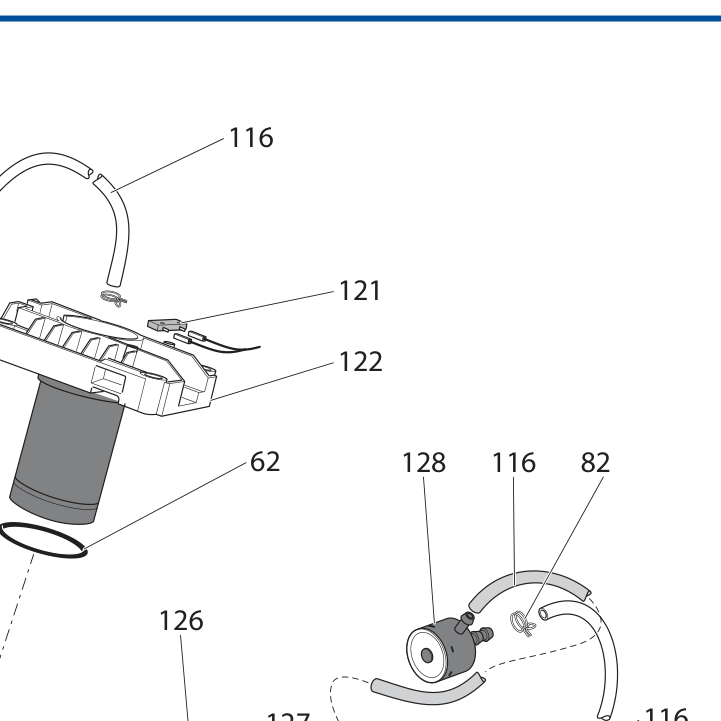

📐 Schematic reference image: The product photo is an exploded parts diagram from De'Longhi service documentation (model CAM51035M). Your order includes item #122 — Mechanics Valve CAM only. Other position numbers visible in the diagram (#62, #82, #116, #121, #126, #128) are separate components and are not included.
Genuine De'Longhi replacement mechanics valve (CAM type) — part number AS00005477.
Internal mechanical valve assembly used in the brewing and water distribution system of select De'Longhi bean-to-cup espresso machines. The CAM designation refers to the cam-actuated valve mechanism.
Compatibility: Fits select De'Longhi ECAM and ESAM machines. Confirm your machine model and original part number before ordering.
Part number: AS00005477 | DLS description: MECHANICS VALVE (CAM)
