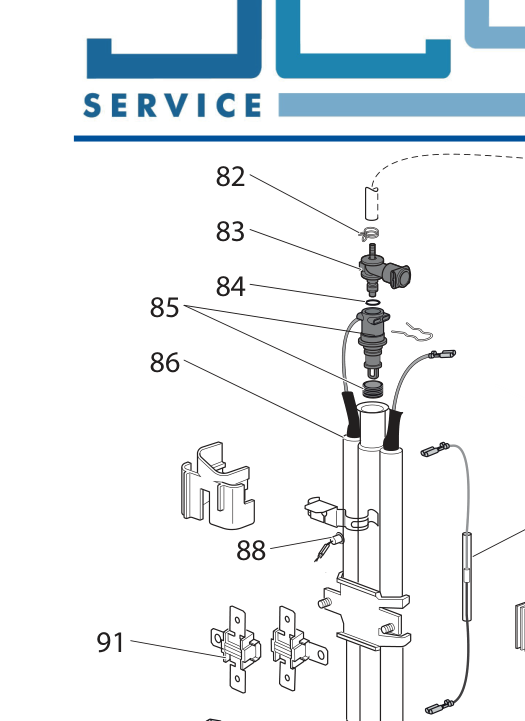

📐 Schematic reference image: The product photo is an exploded parts diagram from De'Longhi service documentation (model CAM51035M). Your order includes item #86 — Straight Vaporizer 120V 1460W only. Other position numbers visible in the diagram (#82, #83, #84, #85, #88, #91) are separate components and are not included.
Genuine De'Longhi replacement straight vaporizer (steam generator) — part number AS00005465, rated 120V / 1460W.
This is the straight-style thermoblock/vaporizer unit that heats water for steam and hot water output on select De'Longhi bean-to-cup and pump espresso machines. Rated 120V / 1460W for US and Canadian machines.
Compatibility: Fits select De'Longhi ECAM and ESAM machines using a straight-style vaporizer. Confirm your machine model and original part number before ordering.
Part number: AS00005465 | DLS description: STRAIGHT VAPORIZER (120V 1460W) | Voltage: 120V | Power: 1460W
For US machines only. Not compatible with 220–240V European models.
